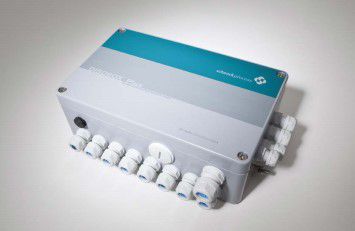

Bộ chuyển đổi DISOBOX PLUS Schenck process

Mã sản phẩm:

A/D Disobox plus converter

Mô tả:

Bộ chuyển đổi tín hiệu đa kênh A/D Disobox plus converter hãng Schenck process Việt Nam được ứng dụng trong nhiều lĩnh vực khác nhau như cân xe tải, cắt giảm quá tải

Chia sẻ:

Số lượng

Chi tiết sản phẩm

VME 21080 Bộ chuyển đổi tín hiệu Schenck process Việt Nam

A/D Converter DISOBOX® Plus Schenck process Việt Nam

Bộ chuyển đổi A/D biến tín hiệu đầu vào thành dữ liệu số hoặc luồng dữ liệu có thể được xử lý. DISOBOX PLUS là bộ chuyển đổi tín hiệu tại chỗ đa kênh. Tín hiệu đầu ra của mọi loadcell đều được kết nối với số hóa riêng.

Ứng dụng của sản phẩm:

The Schenck Process DISOBOX Plus is a multi-channel, on-site analogdigital converter unit. The output signal of each load cell connected is digitized separately. This allows the measuring voltage of each individual load cell to be accessed at any time – for many applications an invaluable advantage:

in commissioning (analysis of dead weight distribution, electronic corner adjustment)

in operation (analysis of the load distribution on the scales, load cell monitoring)

and in case of a fault (rapid identification of the components affected) The digital transmission through a standard fieldbus system is fast, fail-safe and easy to project.

Equipment Supplied	Type	Material Nr.
Basic Units
DISOBOX base unit,
A/D converter unit with	VME 21080	V081000.B01	Đại lý Schenck process tại Việt Nam
8 measuring channels
DISOBOX base unit,
A/D converter unit with	VME 21040	V081001.B01	Nhà phân phối schenck process
4 measuring channels
DISOBOX, A/D converter unit
with 8 measuring channels	VME 21080-3D	V081100.B01	A/D Disobox plus schenck process
for ATEX category 3D
DISOBOX, A/D converter unit
with 4 measuring channels	VME 21040-3D	V081101.B01	Schenck process Việt Nam
for ATEX category 3D
DISOBOX, A/D converter unit
with 8 measuring channels	VME 21080-2D	V081102.B01	đại diện hãng Schenck process Việt Nam
for ATEX category 2D
DISOBOX basic unit,
A/D converter unit with
A/D converter unit with
8 measuring channels and	VME 21081	V081003.B01	đại lý Schenck việt nam
load cell connections
overvoltage protection for the

DISOBOX basic unit,
A/D converter unit with
4 measuring channels and	VME 21041	V081004.B01
DISOBOX basic unit,
overvoltage protection for the
load cell connections
A/D converter unit with	VME 21084	V081005.B01
8 measuring channels,


stainless steel housing
DISOBOX basic unit,
A/D converter unit with
A/D converter unit with	VME 21044	V081006.B01
4 measuring channels,


stainless steel housing
Bus Cards
Optional PROFIBUS,	VPB 28020	V081904.B01
mounted and wired	VPB 28020	V081904.B01
mounted and wired
mounted and wired
Optional PROFINET,	VPN 28020	V533496.B01
	VPN 28020	V533496.B01

Optional DeviceNet,	VCB 28020	V081906.B01
Optional DeviceNet,
mounted and wired
mounted and wired
Analog Input	VAI 20100	V078800.B01
Optional interface expansion,	VSS 28020	V081905.B01
mounted and wired	VSS 28020	V081905.B01
mounted and wired
Analog I/O

Analog Output 0 - 20 mA,	VAO 20100	V078801.B01

max. 11 V
max. 11 V
Accessories
Analog Output 0 - 10 V,	VAO 20101	V078802.B01
max. 50 mA	VAO 20101	V078802.B01
max. 50 mA

Power supply unit/	VNT 20410	V028209.B01
Power supply unit/
serial adapter IP20
serial adapter IP20
Load cell simulator,	VWZ 21000	V081029.B01
8 channel	VWZ 21000	V081029.B01


DISOPLAN	VPL 20430	V029764.B01
Grounding angle for fitting the
Grounding angle for fitting the
PEL connections of the load		V035403.B01
PEL connections of the load		V035403.B01

Thông tin sản phẩm hãng: SCHENCK

Thông tin sản phẩm tại TMP: SCHENCK VIỆT NAM

Về thiết bị :

The DISOBOX Plus has up to 8 measuring channels (model-dependent). One load cell can be connected to each channel. The fact that each individual signal can be accessed individually allows each load point to be calibrated separately (electronic corner adjustment) without requiring the box to be opened, without plugging, soldering, … Each channel has its own highresolution analog/digital converter (not a multiplexer). This makes the DISOBOX Plus also suitable for measuring and controlling fast sequences – e.g. of feeds. The integrated I/O signals allow direct control of time-critical signals such as an overload shutdown by bypassing the connected control systems. The individual load cell signals can also be accessed separately during operation, in order to e.g. monitor the sensors or, in case of a fault, to localize quickly the source of the fault.
