M121-AM, M721-AM, M550-AM Nireco thiết bị điều khiển vị trí

Liên hệ:

Liên hệ

Mã sản phẩm:

M220-AM, M721-AM, M550-AM, M810-AM

Mô tả:

M220-AM, M721-AM, M550-AM, M810-AM thiết bị điều khiển vị tri Nireco Việt Nam. đại lý Nireco Việt Nam, hãng Nireco tại Việt Nam, cảm biến Nireco

Chia sẻ:

Số lượng

Chi tiết sản phẩm

Thiết bị điều khiển vị trí Nireco Việt Nam

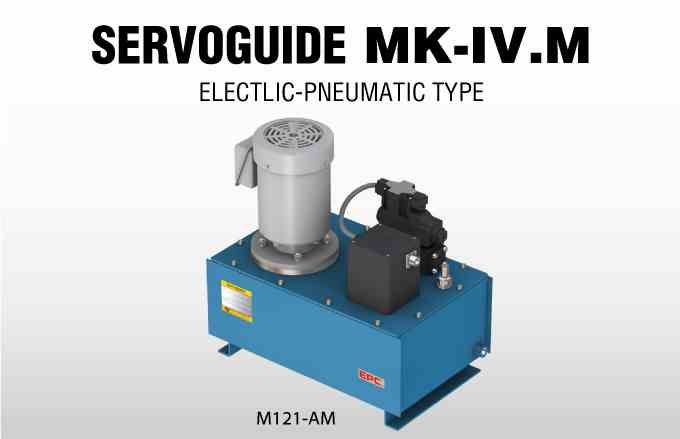

M121-AM, M721-AM, M550-AM Nireco

Feature

Compact and highly reliable.
Large operating force and high sensitivity and accuracy (control within±0.l mm according to installation conditions)
A variety of sensors are available according to the application.
The sensor, amplifier, controller, and actuator have high responses.
Non-contact detecting system.
Very easy installation and maintenance.
All variety of sensors are available according to the application.
The remote control head and/or the centering sensor further simplifies operation.(option)

System Components

The Servoguide MK-IV. M is composed of a sensor, amplifier, controller, work cylinder, and a guide roll or reel stand. This system can be applied to a wide range of objects with the various sensors available.

Specifications

MODEL	Type	Max operating pressure Mpa	Pump capacity L/min		Pump type	Motor Output W	Max. operating force kN Cylinder bore mm		Max. operating speed with no load mm/s Cylinder bore mm
MODEL	Type	Max operating pressure Mpa	Pump capacity L/min		Pump type	Motor Output W	50	80	50	80
M121-AM	Single standard	1.5	4.2		Fix displacement	400	2.9	7.4	34	13
M220-AM	Twin standard	1.3	9（60Hz）	No load	Variable	750	2.9	7.4	34	13
M220-AM	Twin standard	1.3	7.5（50Hz）	No load	Variable	750	2.9	7.4	34	13
M721-AM	High load	2.5	9（60Hz）	No load	Variable	750	－	12.3	－	30
M721-AM	High load	2.5	7.5（50Hz）	No load	Variable	750	－	12.3	－	30
M550-AM	High pressure / high resolution type	5	9（60Hz）	No load	Variable	1500	－	24.6	－	60
M550-AM	High pressure / high resolution type	5	7.5（50Hz）	No load	Variable	1500	－	24.6	－	60
M810-AM	High output type	5	12.5（60Hz）	No load	Variable	1500	－	24.6	－	60
M810-AM	High output type	5	10.5（50Hz）	No load	Variable	1500	－	24.6	－	60
