Description:
The IFMA signal conditioners accept frequency inputs, and output analog voltage or current in proportion to the input frequency with 0.1% accuracy. The IFMA can accept any frequency source input from 1 Hz to 25 KHz. Signal conditioning with our IFMA products can be easily configured using a seven position DIP switch, rotary switch and/or push-button. The input circuitry is also DIP switch selectable for a variety of sources.

LED lights on the face of the unit illuminate under normal operation to display the input and output status of the IFMA. These LEDs are also used to provide visual feedback for device configuration. The unit is equipped with a universal mounting foot and can be mounted to either a top hat (EN 50 022) or a G profile (EN 50 035 – G32) DIN rail.

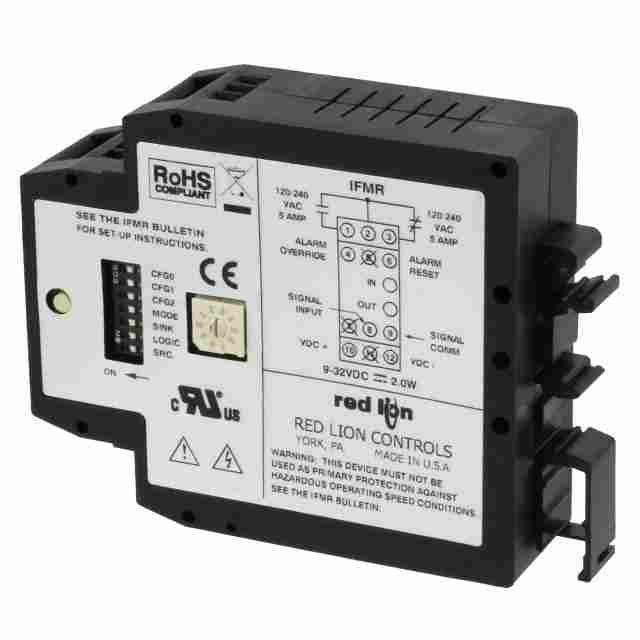

IFMR0036, IFMR0066 ifma signal conditioners Redlion
