F760 WISE- đồng hồ đo lưu lượng dòng chảy chất lỏng F760 Wise

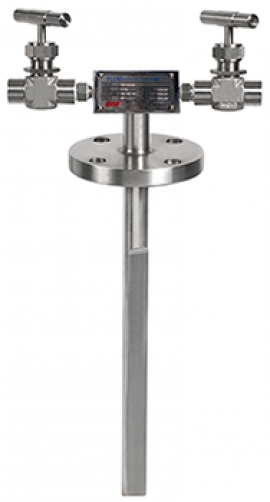

Averaging pitot tube
Model : F760

Thông số đồng hồ F760 Wise đồng hồ đo lưu lượng dòng chảy chất lỏng

 Averaging pitot tube is an energy saving device used to measuring the flow of liquids, gases and steam in pipes, stacks and rectangular ducts. It provides high, long term stability with low permanent pressure loss. Examples of their applications are precise volumetic flow measurement in batch processes, continuous measurement of liquid ingredients in the process industry, fuel, air, steam and gases as primary energy source as well as in control functions requiring a high degree of stability and repeatability.

Advantages Wise F760

● Unique profile shape enables high flow rate turn down
● Dual averaging for better accuracy
● Short upstream and downstream straight pipe lengths
● Long term accuracy unaffected by wear

Measuring fluid

Liquid, Gas, Steam and etc.

Material

304SS, 316SS, 316L SS and Monel
Special materials are available

Pipe size

50 ~ 1,800 mm
2" ~ 72"

Max. working pressure

15 MPa

Max. working temperature

600℃

Accuracy

±1% of actual flow rate

Repeatability

±0.1% of actual flow rate or better

Rangeability

10:1
