FWG 1 Thiết bị đo chiều rộng

FWG 1 Flange Width Gauge

AT2E FWG 1 ,  AT2E Việt Nam

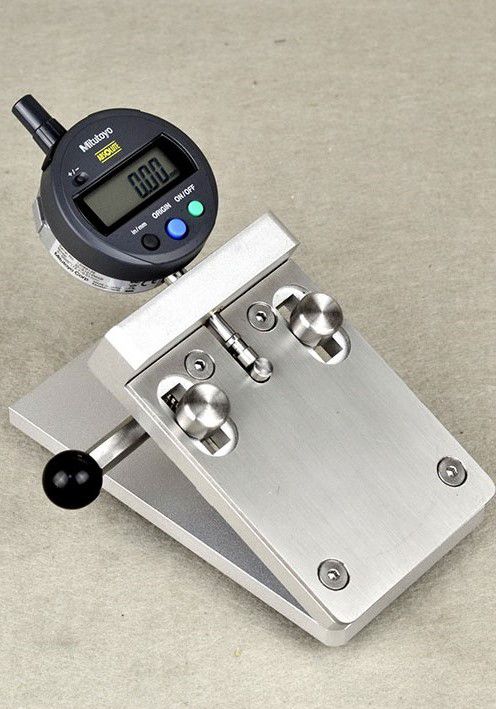

FWG-1 Flange Width Gauge is used to measure the flange width of empty cans.

Easy-operation design offers a fast and accurate measurement of flange width.

In order to avoid the manual recording error, the gauge can be connected to SPC system or AT2E “SeamCheck” software with DTB-1 Data Transporting Box and cable. So that, the data can be transferred to SPC system or “SeamCheck” software through DTB-1 and cable.

Spécifications techniques :

• Measuring range: 0-5 mm

• Resolution: 0.01 mm

• Accuracy: ±0.01 mm

• Sample range: 3-pcs & 2-pcs

• Sample capacity: 50 mm à 90 mm dia. can (Bigger by order)

• Overall size: 180(L) x 103(l) x 108(H) mm

• Net weight: 1 kg
